EM&A Data
Noise Monitoring

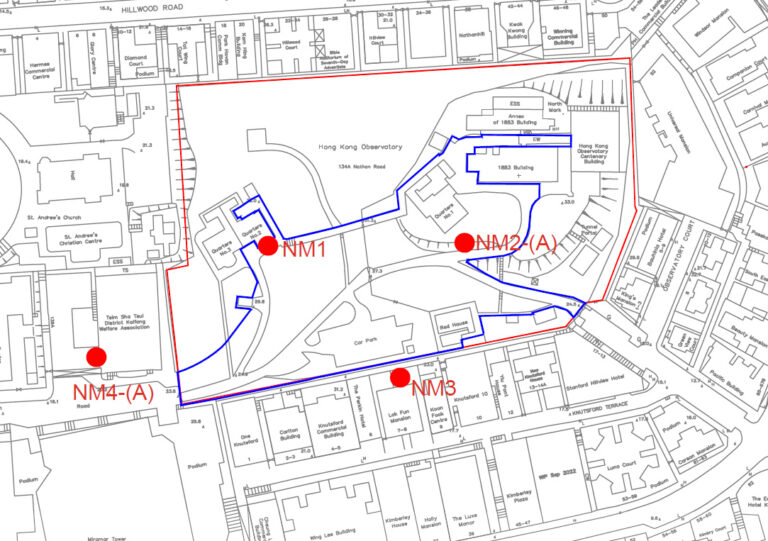

Location Map of Noise Monitoring Stations
| Station | Date | Weather | Start Time | Wind Speed (m/s) | Leq (30 mins) (dB(A)) | Corrected Leq (dB(A)) | Limit Level (dB(A)) | Baseline Leq (30 mins) (dB(A)) | Remarks (Free-field measurement, with +3dB correction / Façade measurement?) |
|---|---|---|---|---|---|---|---|---|---|
| NM1 | 2026-02-14 | Fine | 10:27 | <5 | 58.8 | N/A | 75 | 56.0 | Façade |
| NM1 | 2026-02-20 | Fine | 11:29 | <5 | 57.7 | N/A | 75 | 56.0 | Façade |
| NM1 | 2026-02-26 | Cloudy | 13:13 | <5 | 61.0 | N/A | 75 | 56.0 | Façade |
| NM2-(A) | 2026-02-14 | Fine | 12:43 | <5 | 57.3 | N/A | 75 | 59.3 | Free-field |
| NM2-(A) | 2026-02-20 | Fine | 10:07 | <5 | 61.0 | N/A | 75 | 59.3 | Free-field |
| NM2-(A) | 2026-02-26 | Cloudy | 13:54 | <5 | 64.7 | N/A | 75 | 59.3 | Free-field |
| NM3 | 2026-02-14 | Fine | 11:17 | <5 | 56.4 | N/A | 75 | 62.3 | Façade |
| NM3 | 2026-02-20 | Fine | 10:47 | <5 | 59.1 | N/A | 75 | 62.3 | Façade |
| NM3 | 2026-02-26 | Cloudy | 15:39 | <5 | 61.5 | N/A | 75 | 62.3 | Façade |
| NM4-(A) | 2026-02-14 | Fine | 9:40 | <5 | 59.5 | N/A | 75 | 66.3 | Façade |
| NM4-(A) | 2026-02-20 | Fine | 9:18 | <5 | 59.3 | N/A | 75 | 66.3 | Façade |
| NM4-(A) | 2026-02-26 | Cloudy | 14:45 | <5 | 61.3 | N/A | 75 | 66.3 | Façade |
